Log Periodic Antenna Moved

The Log Periodic antenna was transferred from its old location atop the shipping containers to the new tower by John, KI4UIP; Donn, N4KII; Dave, KR4U; Bob, N2ESP; and Hal, W1EES. Ron, KP2N replaced the logging computer power supply. With luck, W4TA will be ready for the sweepstakes. Click on title for photos.

lp2

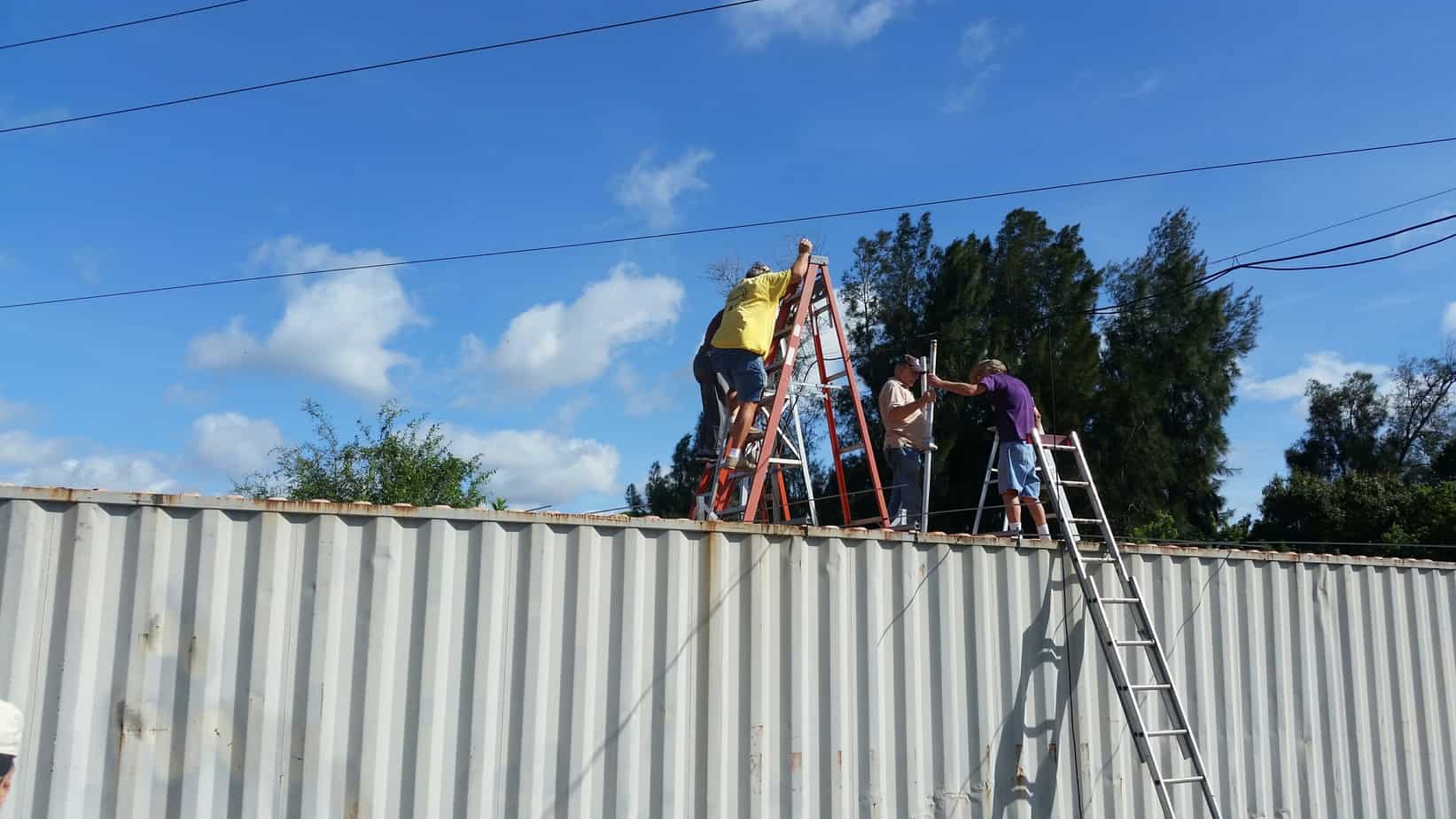

The LP antenna removed from shipping containers.
lp1

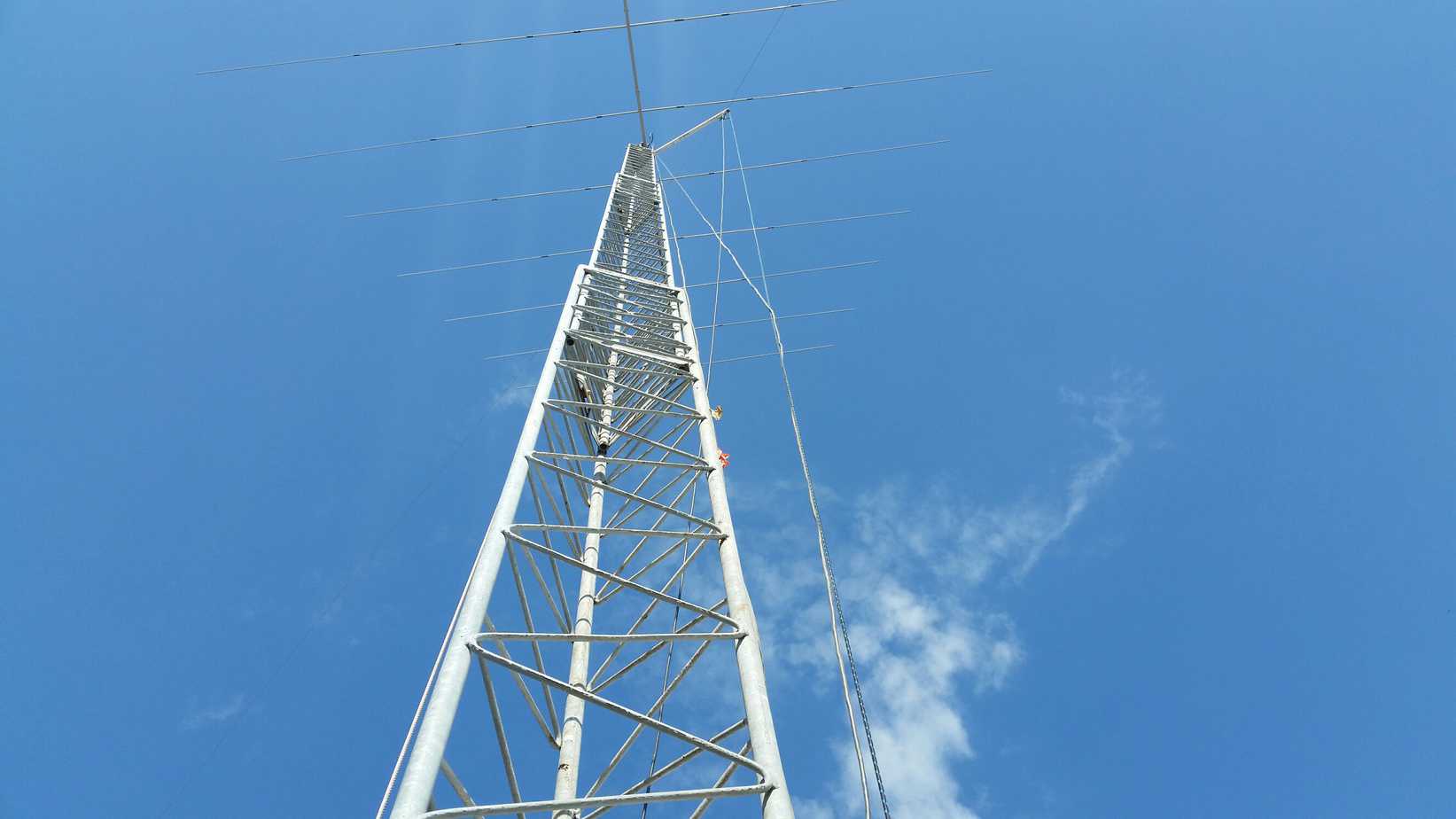

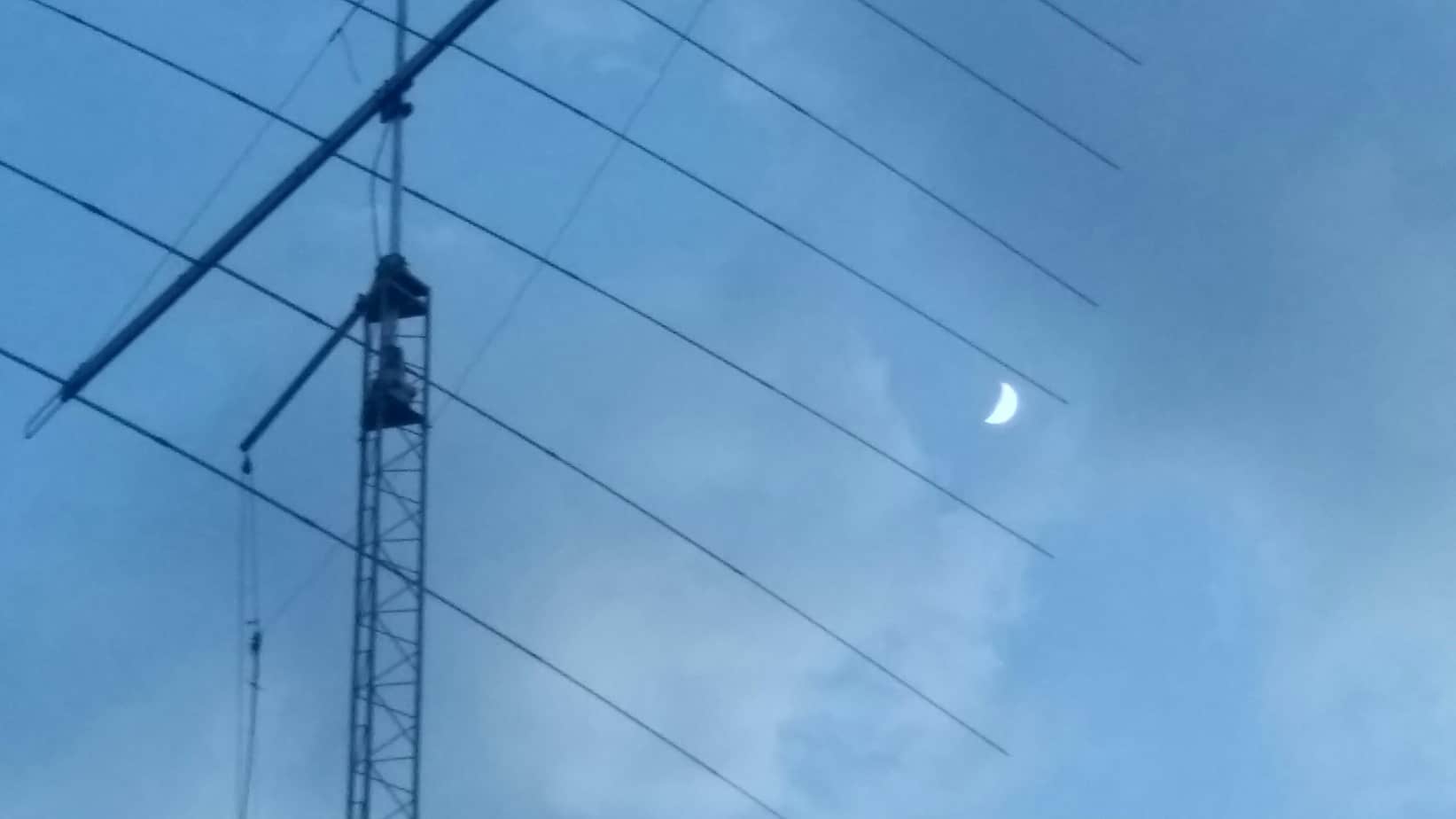

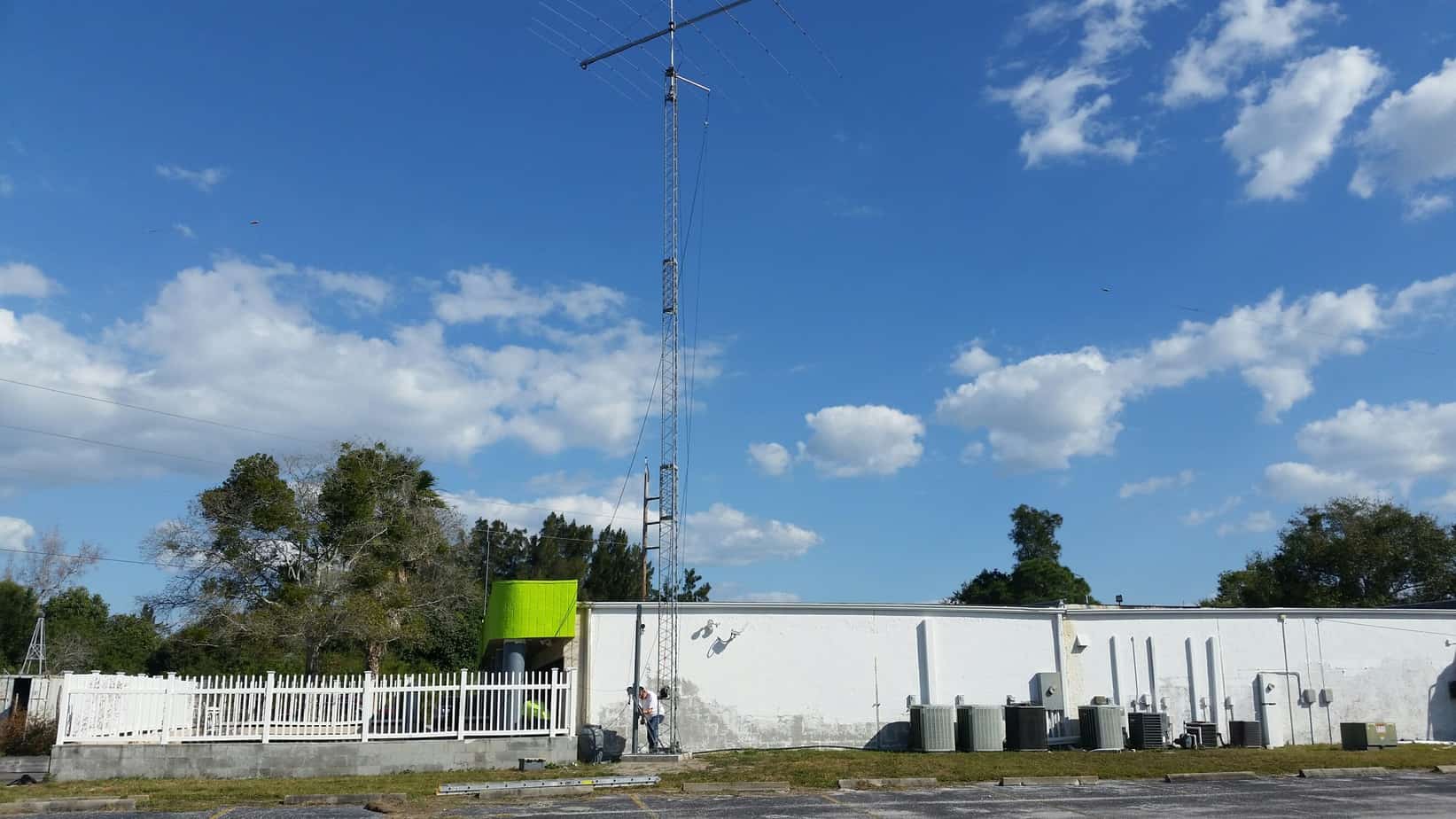

The LP antenna installed on new tower.

Related Images:

It’s Party Time

Yes, it’s time for an antenna get together.

Tower site B
Current antenna location

The plan is to remove the log periodic antenna from atop the storage containers, followed by the mast, rotator and thrust bearing. If you would like to help (or supervise) in this effort, the party starts at 10:00AM on Saturday (9/8) the day after the next SPARC meeting.

Hope to see you there.



Related Images:

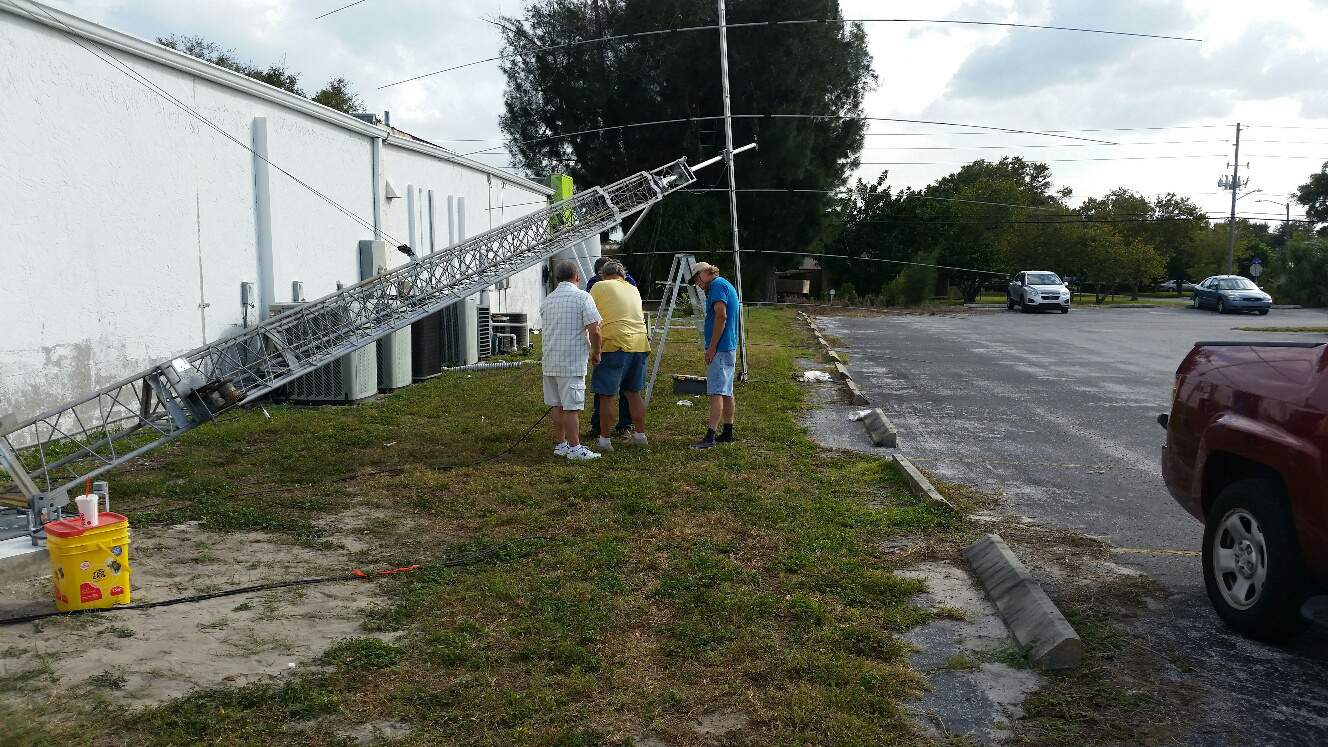

Tower Installed

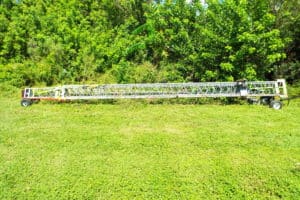

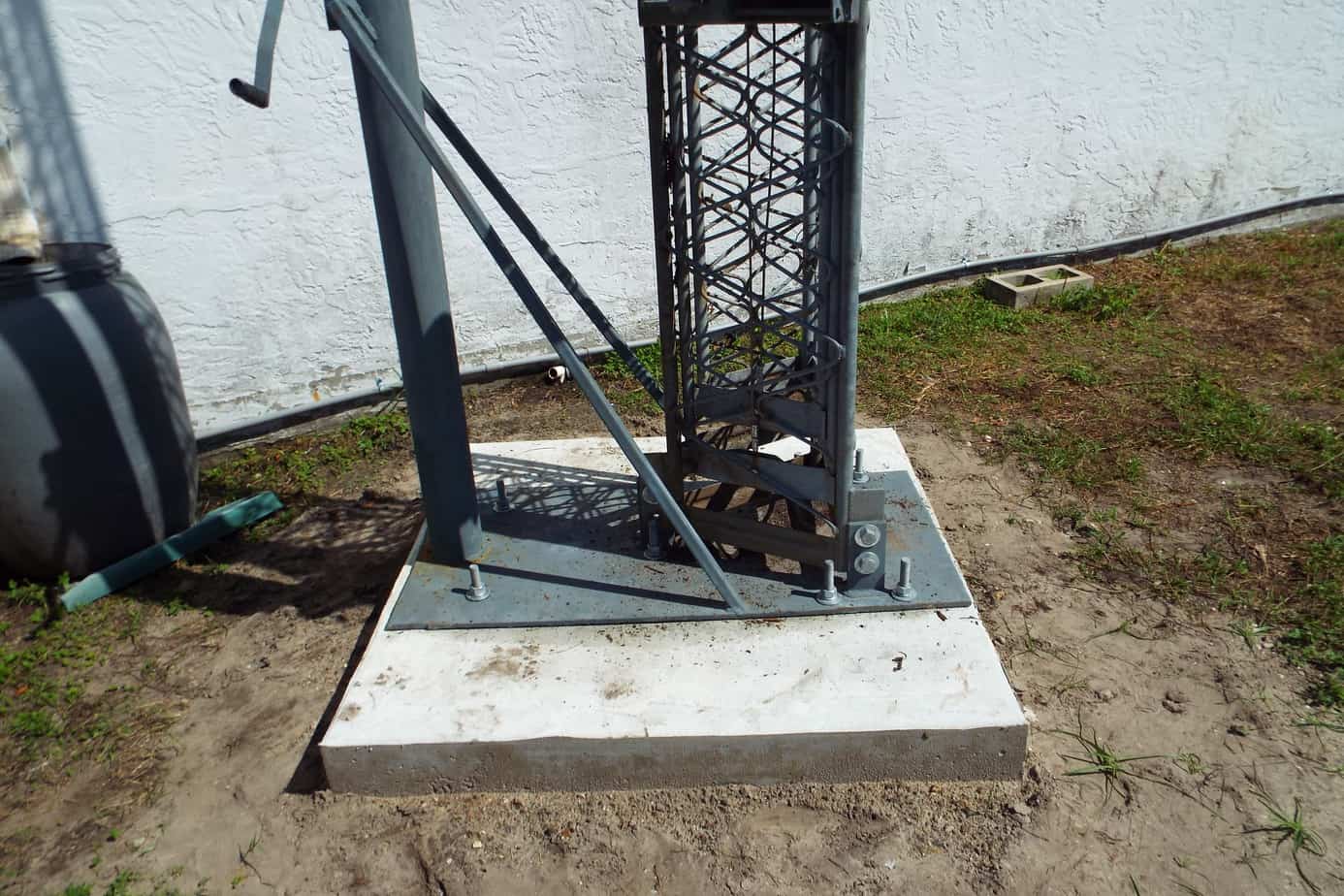

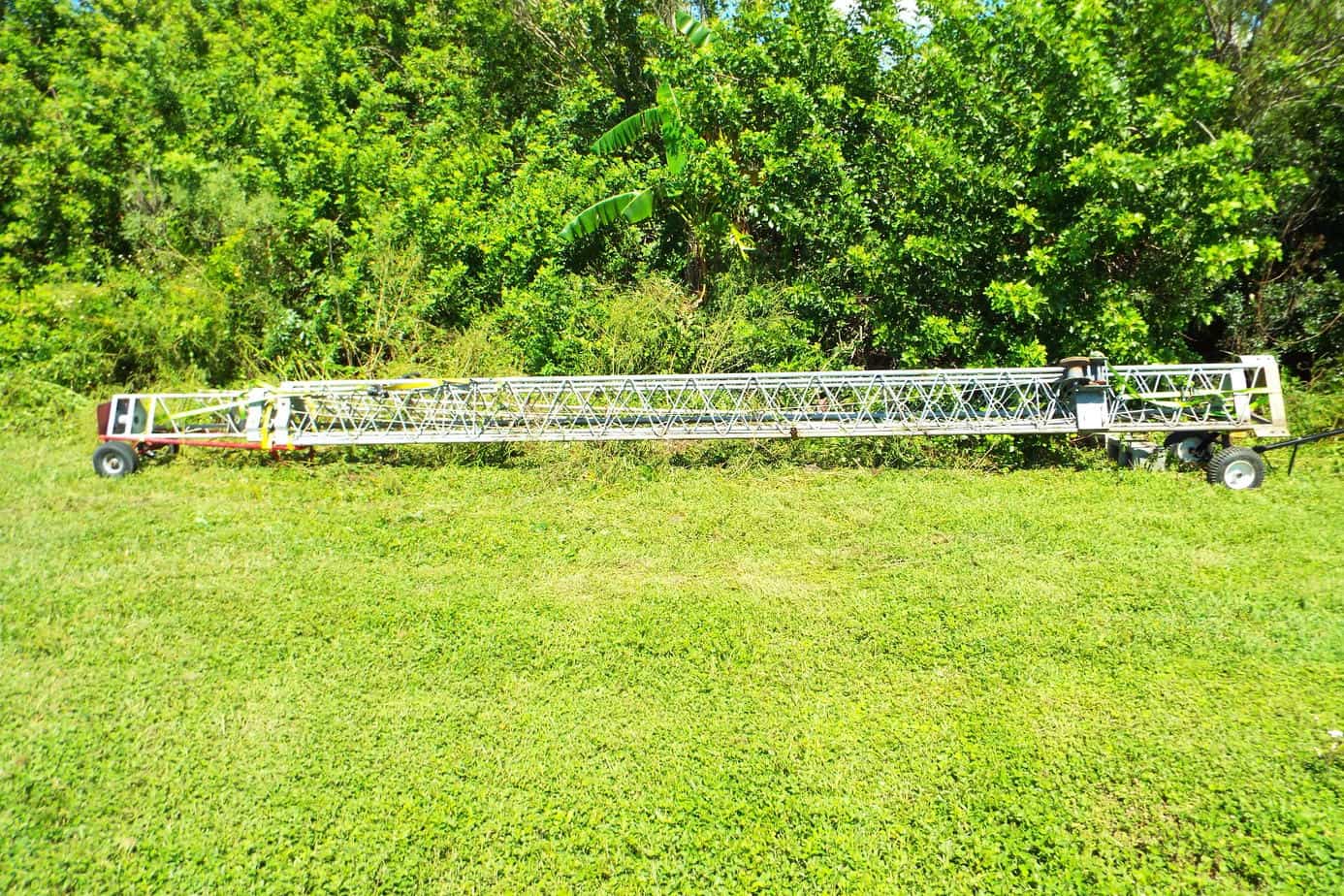

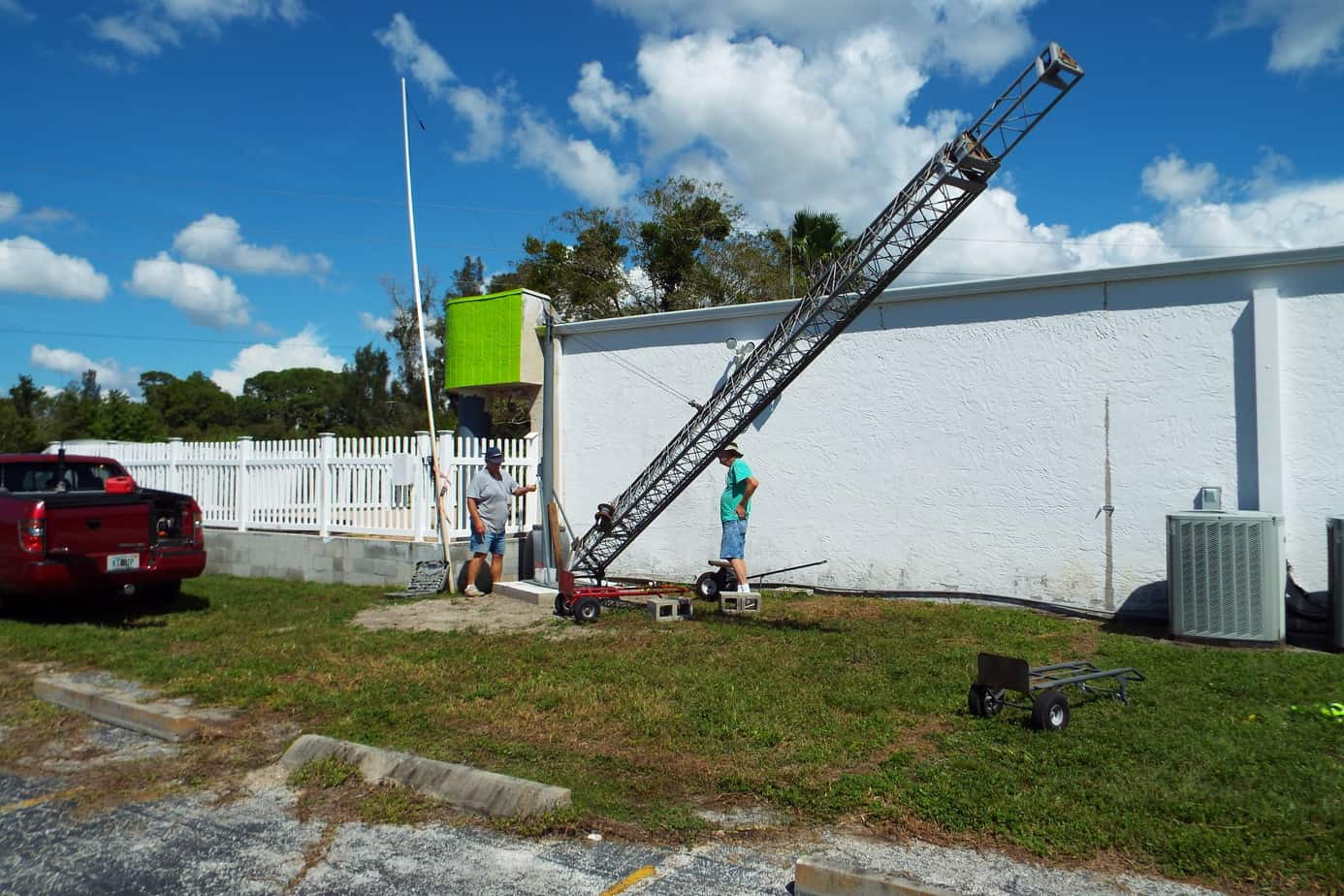

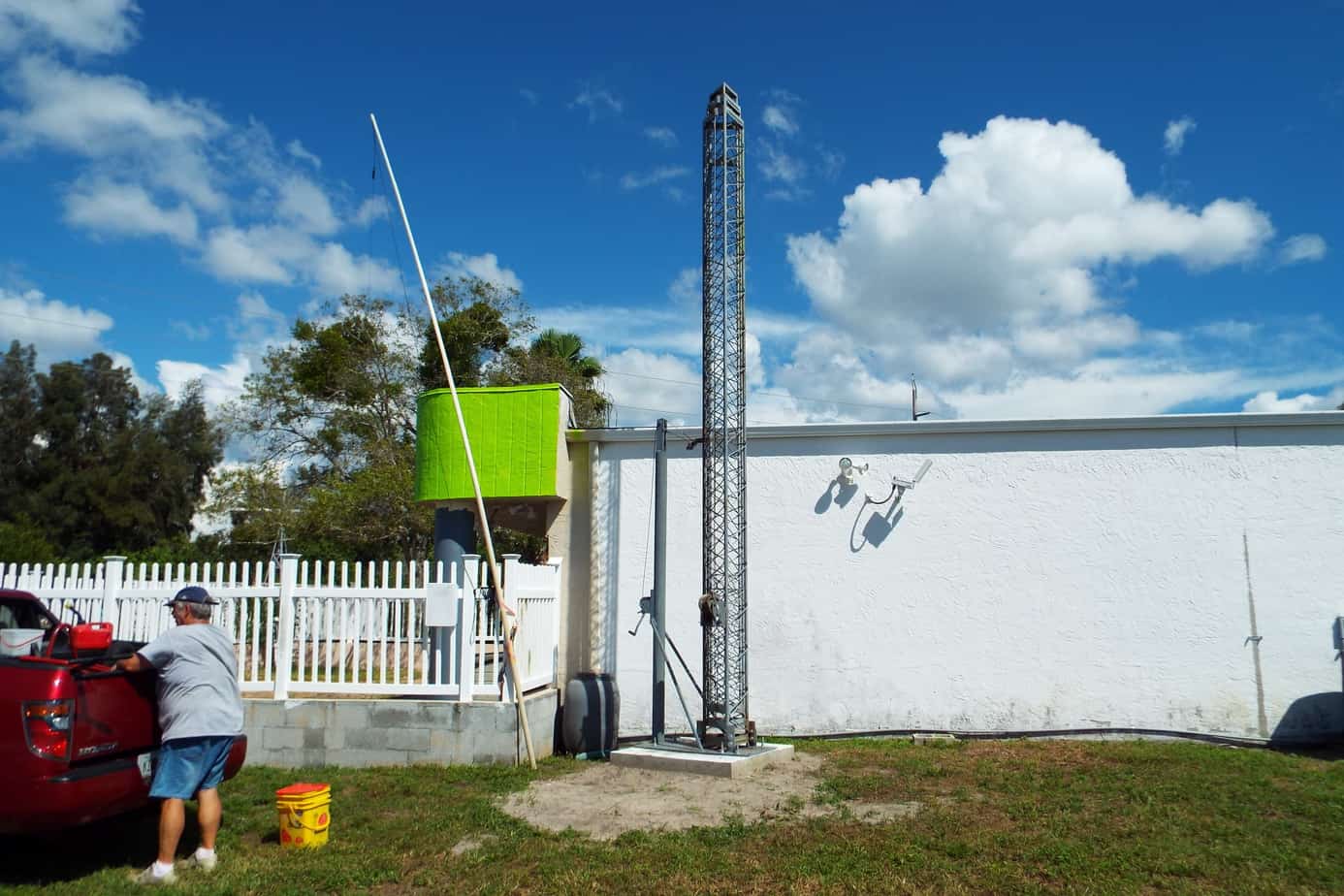

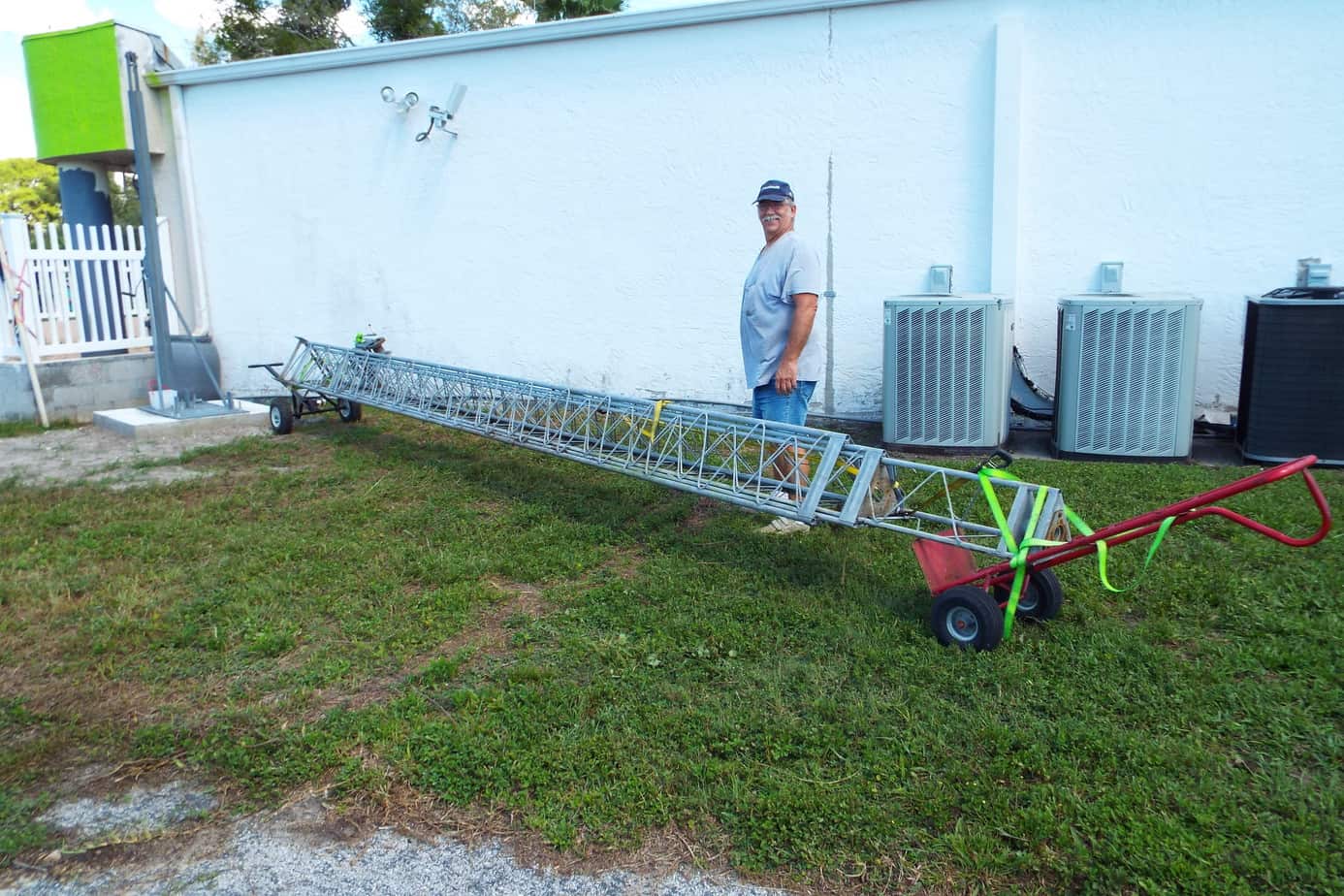

Our trusty tower team consisting of John, KI4UIP; Donn, N4KII and Dave KR4U were at it again. Today (9/27) the tower tilt mechanism was mated with the telescoping tower. The tower mounts to the base with two large bolts that also serve as hinges when the tower goes from horizontal to vertical or vice versa. Once the third leg is bolted to the base, the tower can then be extended to a raised height of approximately 54 feet.

Final installation details include adding tower grounding, installing the rotor, mast, and Click for more

Tower Tilt Mechanism Installed

Today (9/20) the crew of Dave, KR4U; Donn, N4KII; and John KI4UIP installed the tower tilt assembly on the concrete base. Notice the ancient Egyptian influence used in keeping the heavy mechanism above the threaded rod so as not to bend the rods. Now we get to prepare the tower while the concrete base continues to cure.

tlift1

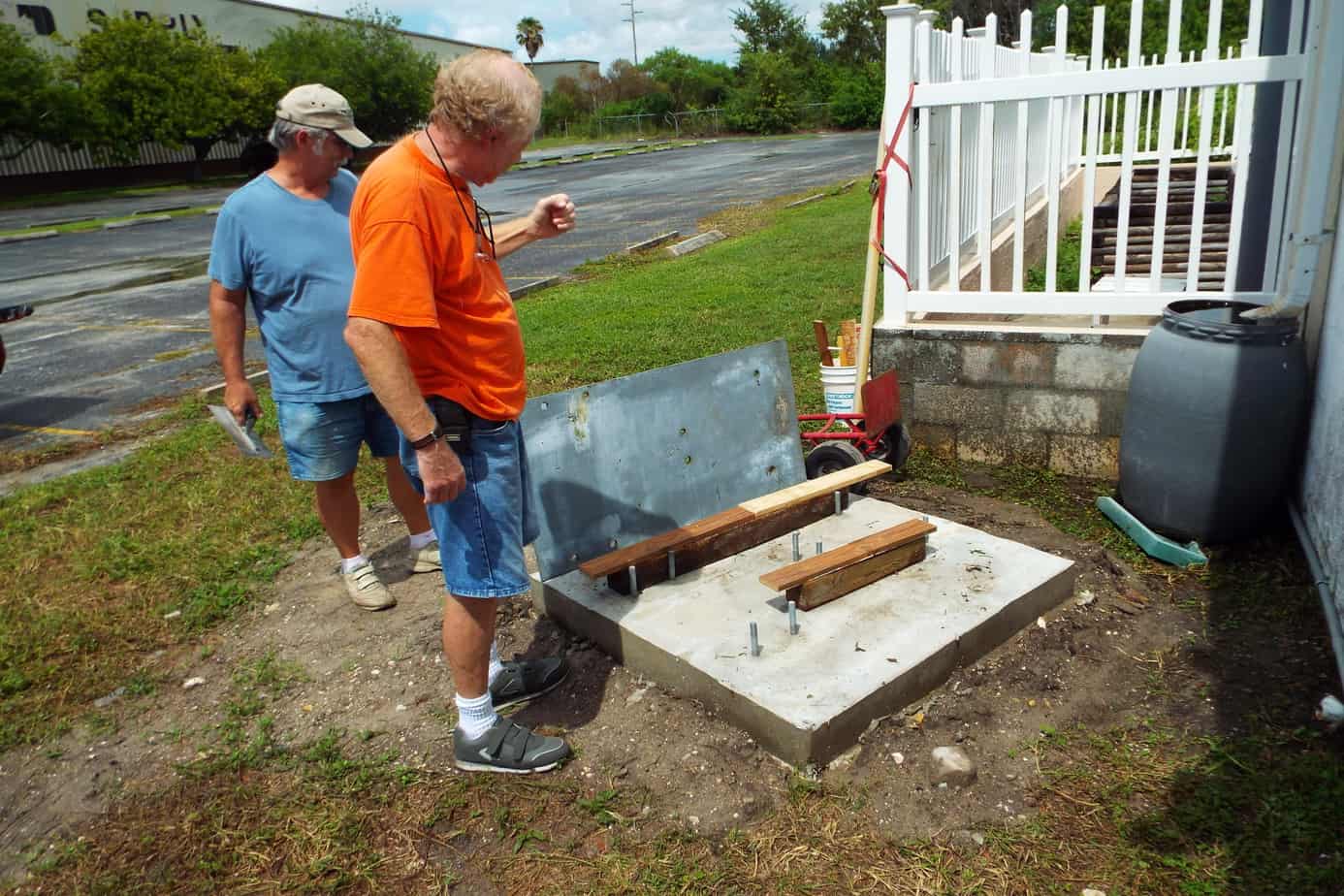

John and Donn prepare to install tilt mechanism
tlift2

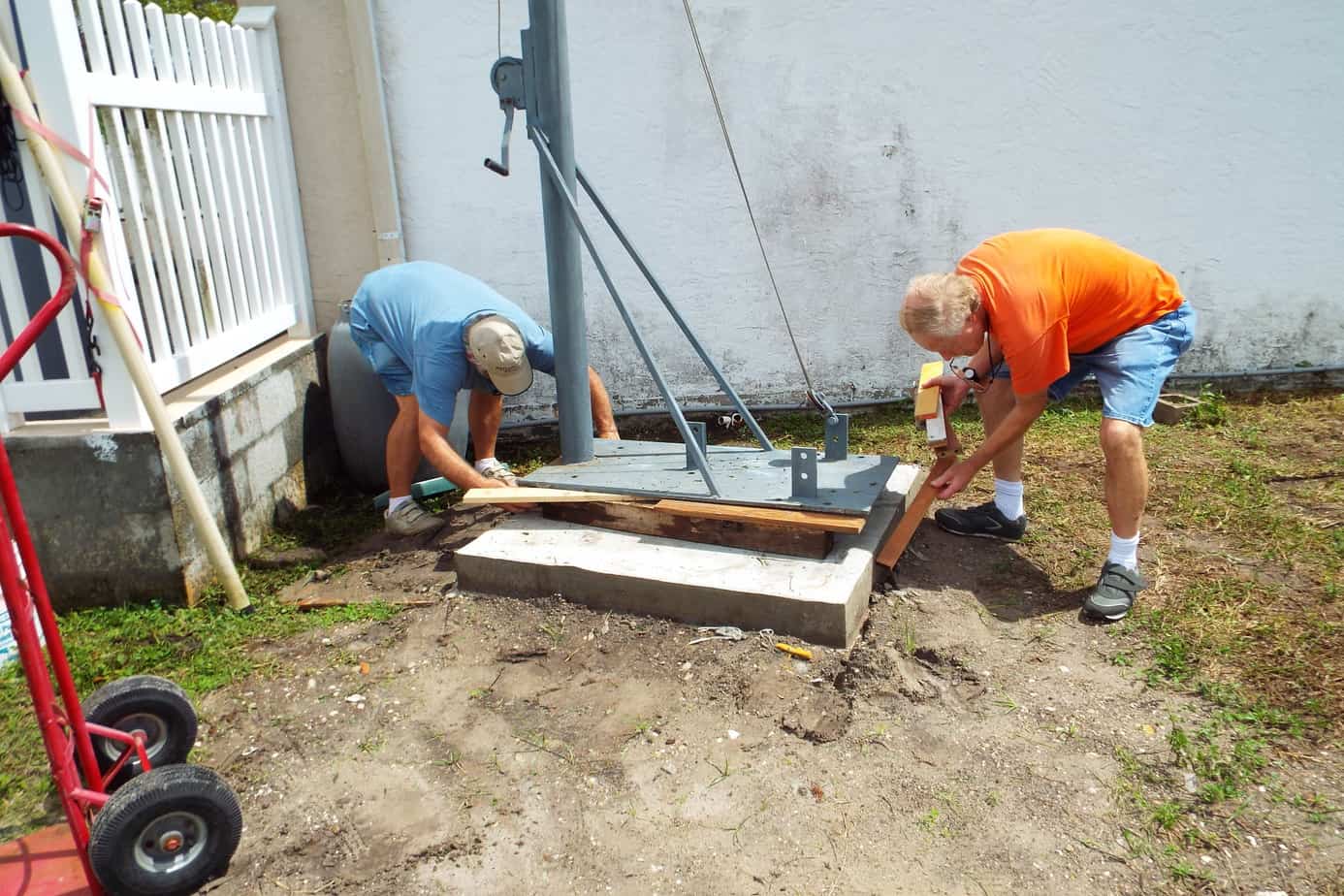

Tilt mechanism lowered onto threaded rod

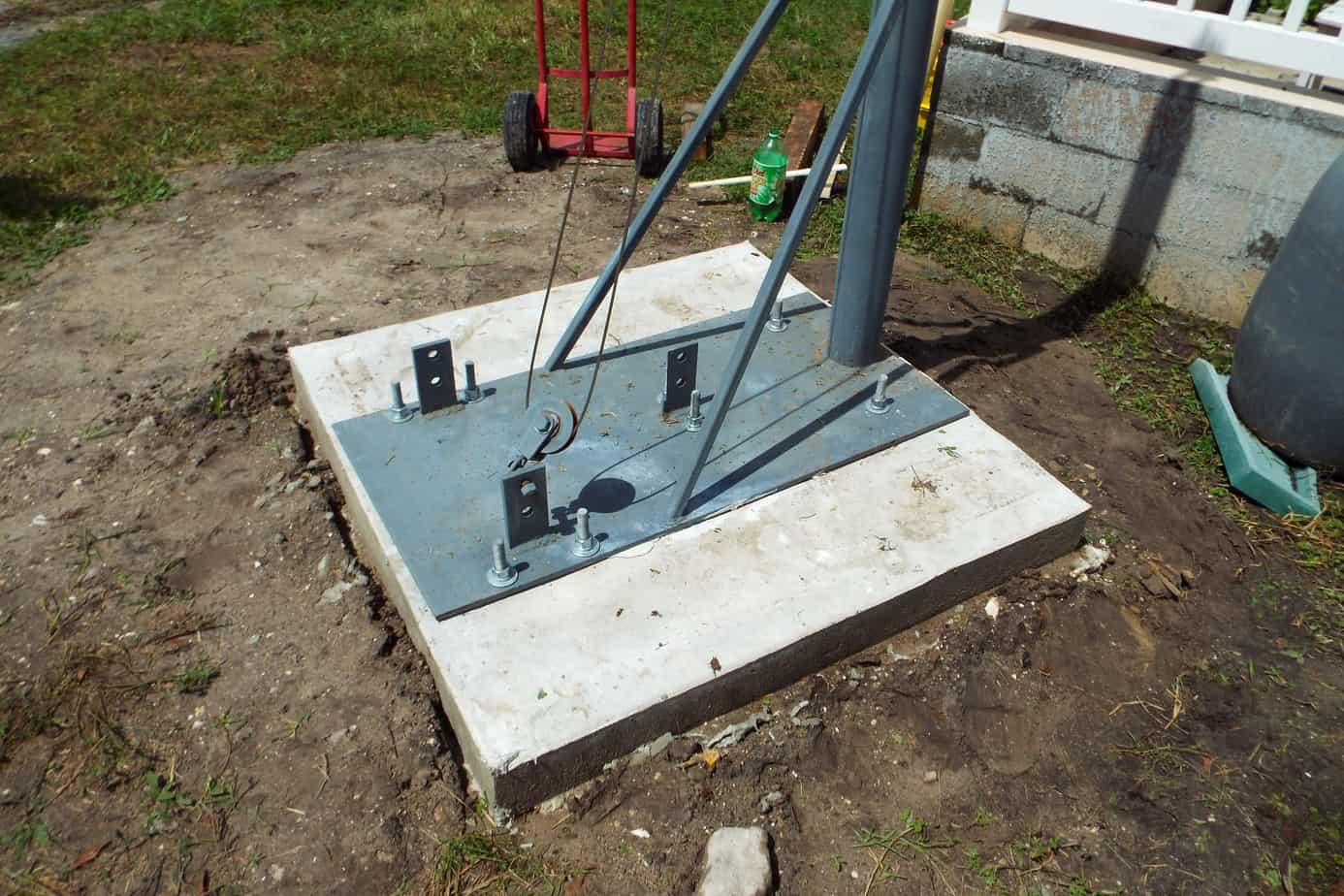

tlift3
Tilt mechanism installed on base

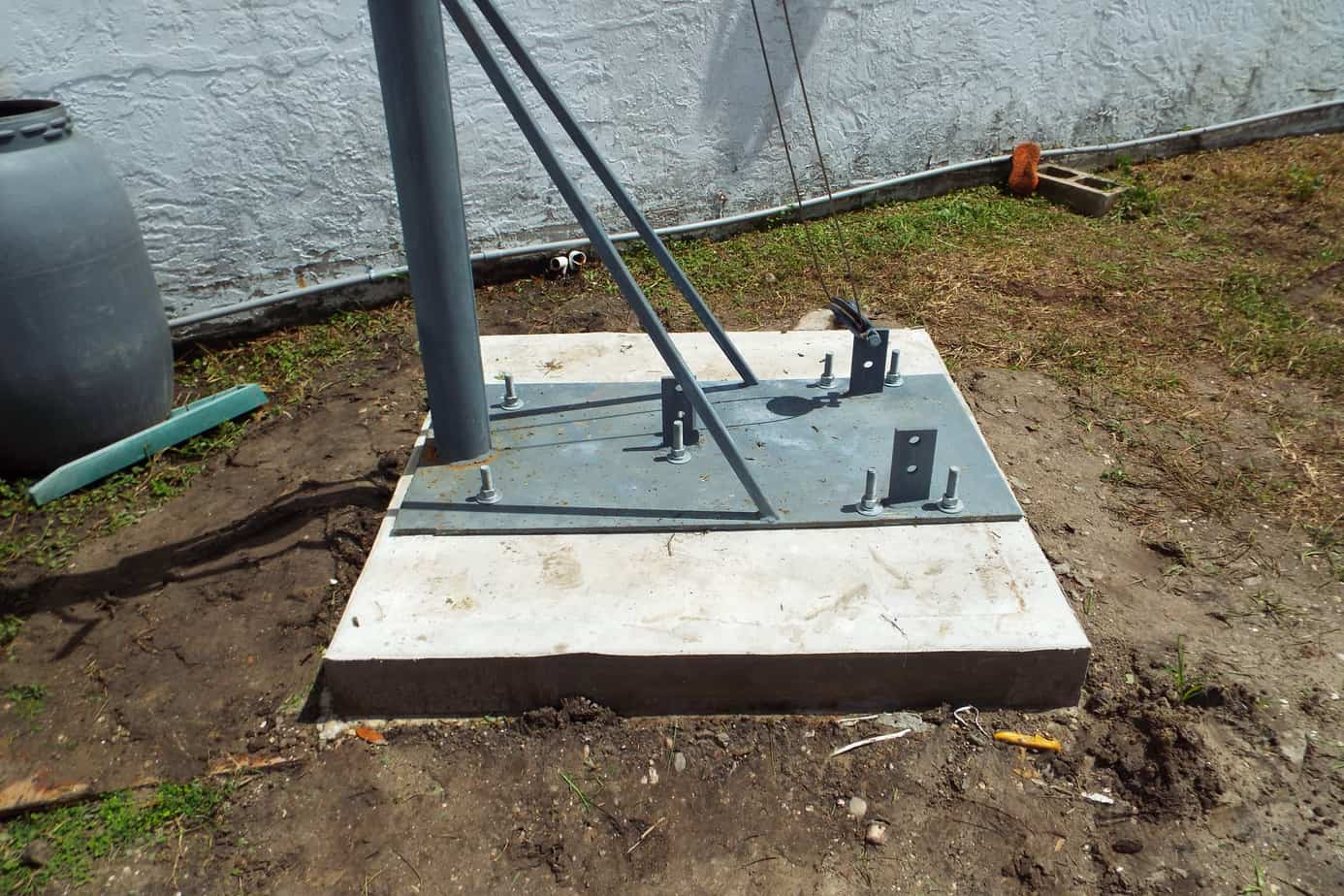

tlift4
Tilt mechanism installed on base

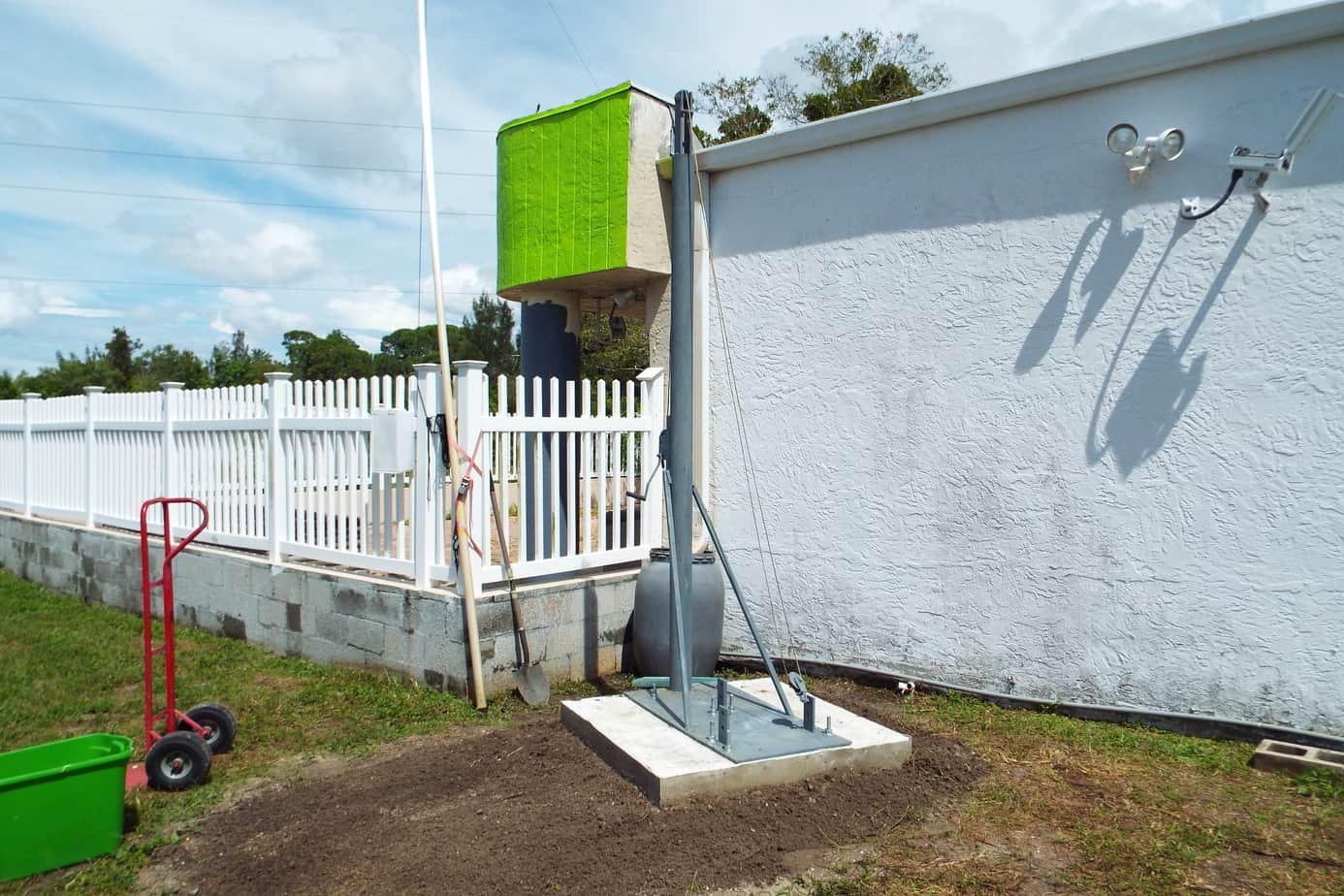

tlift5

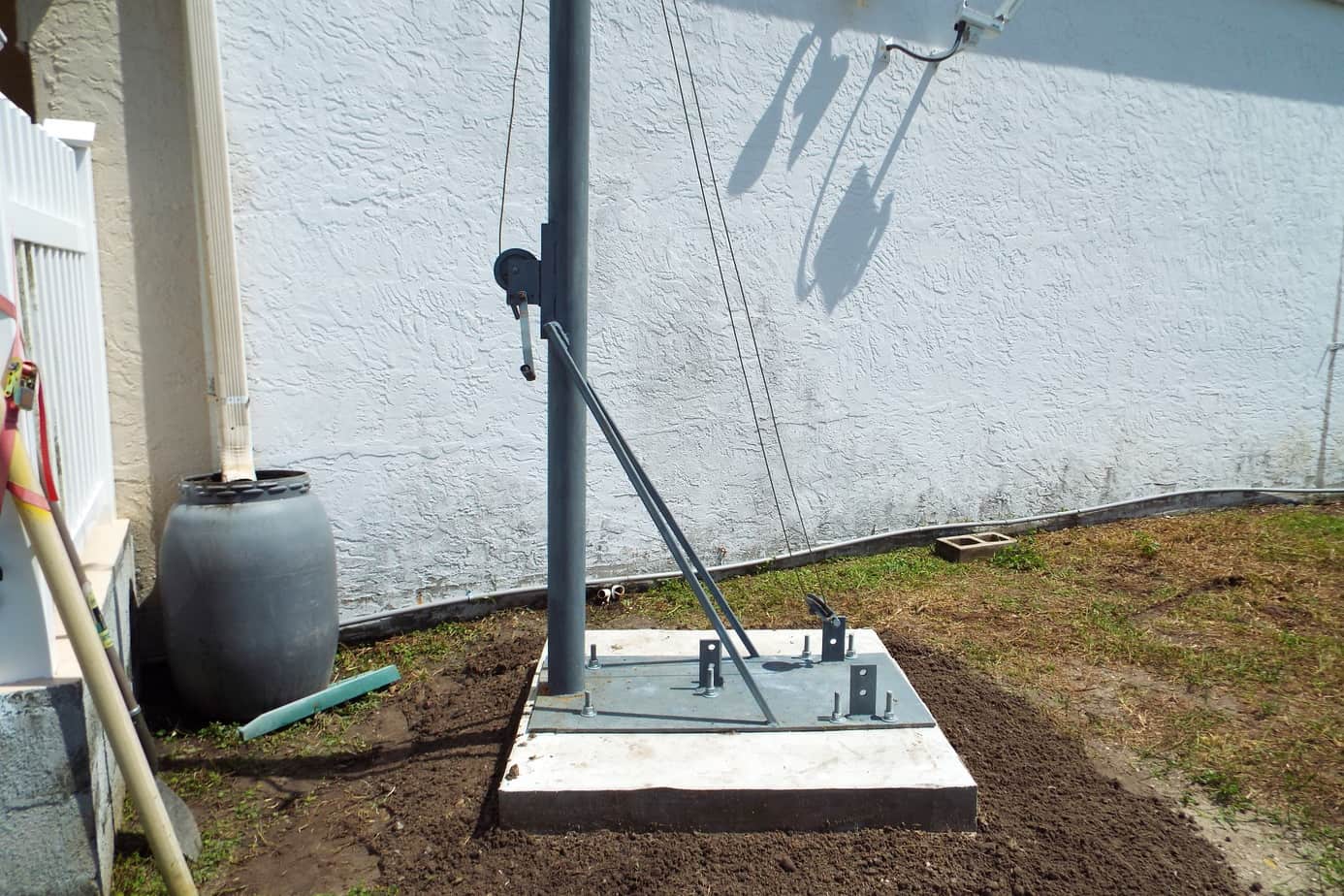

Finished installation of tilt mechanism on base
tlift6
Tilt
Click for more

Tower Installation Update

Today (9/13) we poured concrete. Four yards (16,000 lbs.) of mud, 200 pounds of re-bar, followed by

by eight ¾” threaded rods. Everything went as planned. As we wait for the concrete to harden, we can now come up with a plan to relocate the log periodic antenna that is currently atop the Glen Martin tower that is mounted on the shipping containers.

tower-pour1
Truck setting up to pour
tower-pour2
The pour begins
tower-pour-5
The pour continues
tower-pour-6
Topping off the pour



tower-pour-7
Inserting threaded rods



tower-pour-8
Threaded rods bolted to tower template and
Click for more

Tower Installation Progress

Our tower foundation has been dug, the re-bar cage has been installed, and inspected. We are ready to pour concrete. A few photos below show our progress. We will need to wait awhile while the concrete hardens. Then we get to install the tower base, the tower itself, and finally transplant our LP antenna. Thanks to all that contributed to this effort.

tower-hole-1
Finishing the hole
tower-hole-2
Final touches ready
tower-hole-3
Ready for the pour

Related Images:
